I have created two ESB APIs. You can download these two files and copy to wso2esb-4.9.0/repository/deployment/server/synapse-configs/default/api directory.
1. First API (API-1) will return the TV channels (tvstations.xml).
GET http://localhost:8280/channels
2. The second API (API-2) will return the programs available in each channel (tvprograms.xml).
GET http://localhost:8280/programs?channel=TV-01
Steps:
1. Download and install the JMeter plugins from http://jmeter-plugins.org/downloads/all/
(Download the "Extras with Libs Set")
2. This plugin provides "Json Xpath extractor" feature, which can be used to filter the TV channel names from first API response.
3. Create a new "Thread Group".
"Test Plan" ----> "Add" ---> "Threads (users)" -----> "Thread Group"
4. Add "HTTP Header Manager", this is useful to set the HTTP headers which is required to invoke the API.
"Thread Group" ---> "Add" ----> "Config Element" ---> "HTTP Header Manager"
5. Add HTTP Request, then define a host , protocol, path ..etc.
"Thread Group ----> "Add" ---> "Sampler" -----> HTTP Request"
5. Add JSON path extractor to filter the channel names from the first response.
"HTTP Request" ---> "Add" ---> "Post Processors" ---> "Json path extractor"
variable name : channelNames
Json path expression: $.details.channelDetails.channelDetail[*].name
6. Add another JSON path extractor to assign channel count to a variable.
variable name : channelCount
Json path expression:$.details.totalChannelCount
7. Add "Loop Controller" - set the Loop Count as ${channelCount}
"Thread Group" ---> "Add" ---> "Logic Controller" ---> "Loop Controller"
8. Add counter to construct the for loop.
"Loop Controller" ---> "Add" ----> "Config Element" ----> "Counter"
Start : 0
Increment : 1
Maximum : ${channelCount}
Reference Name : loopCounter
9. Add "BeanShell Processor" to set channel name as a variable.
"Loop Controller" --> "Add" ---> "Post Processors" ---> "BeanShell Processor"

10. Add the second API as HTTP Request.
The channelName is variable defined in the BeanShell processor.
Path : /programs?channel=${channelName}
11. Add a listener to monitor the results.
Eg:
"HTTP Request" ---> "Add" ---> "Listeners" ---> "Summary Report"
11. You can download the .jmx file here and import to JMeter.
1. First API (API-1) will return the TV channels (tvstations.xml).
GET http://localhost:8280/channels
{
"details":{
"totalChannelCount":4,
"channelDetails":{
"channelDetail":[
{
"name":"TV-01",
"owner":"ajith",
"location":"Colombo 05"
},
{
"name":"TV-02",
"owner":"vajira",
"location":"Colombo 05"
},
{
"name":"TV-03",
"owner":"ranjith",
"location":"Colombo 05"
},
{
"name":"TV-04",
"owner":"lakmali",
"location":"Colombo 05"
}
]
}
}
}
2. The second API (API-2) will return the programs available in each channel (tvprograms.xml).
GET http://localhost:8280/programs?channel=TV-01
{
"details": {
"totalPrograms": 4,
"channelName": "TV-01",
"programsDetails": {
"program": [
{
"name": "Morning Show",
"presenter": "ajith",
"duration": "1h" },
{
"name": "News",
"presenter": "vajira",
"duration": "2h" },
{
"name": "Lunch Time Music",
"presenter": "nishatha",
"duration": "3h" },
{
"name": "movie",
"presenter": "lakmali",
"duration": "4h" }
]
}
}
}
Now I'm going to create a JMeter test plan. First invoke API-1 to get TV channels, then iterate through each channel to get TV programs invoking API-2.Steps:
1. Download and install the JMeter plugins from http://jmeter-plugins.org/downloads/all/
(Download the "Extras with Libs Set")
2. This plugin provides "Json Xpath extractor" feature, which can be used to filter the TV channel names from first API response.
3. Create a new "Thread Group".
"Test Plan" ----> "Add" ---> "Threads (users)" -----> "Thread Group"
4. Add "HTTP Header Manager", this is useful to set the HTTP headers which is required to invoke the API.
"Thread Group" ---> "Add" ----> "Config Element" ---> "HTTP Header Manager"
5. Add HTTP Request, then define a host , protocol, path ..etc.
"Thread Group ----> "Add" ---> "Sampler" -----> HTTP Request"
5. Add JSON path extractor to filter the channel names from the first response.
"HTTP Request" ---> "Add" ---> "Post Processors" ---> "Json path extractor"
variable name : channelNames
Json path expression: $.details.channelDetails.channelDetail[*].name
6. Add another JSON path extractor to assign channel count to a variable.
variable name : channelCount
Json path expression:$.details.totalChannelCount
7. Add "Loop Controller" - set the Loop Count as ${channelCount}
"Thread Group" ---> "Add" ---> "Logic Controller" ---> "Loop Controller"
8. Add counter to construct the for loop.
"Loop Controller" ---> "Add" ----> "Config Element" ----> "Counter"
Start : 0
Increment : 1
Maximum : ${channelCount}
Reference Name : loopCounter

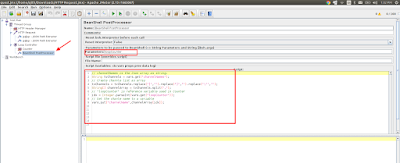

9. Add "BeanShell Processor" to set channel name as a variable.
"Loop Controller" --> "Add" ---> "Post Processors" ---> "BeanShell Processor"

// channelNames is the Json array as string.
String tvChannels = vars.get("channelNames");
// Create channle list as array
tvChannels = tvChannels.replace("[","").replace("]","").replace("\"","");
String[] channelArray = tvChannels.split(",");
// "loopCounter" is reference variable used in Counter
idx = Integer.parseInt(vars.get("loopCounter"));
// Set the chanle name to a variable
vars.put("channelName",channelArray[idx]);
10. Add the second API as HTTP Request.
The channelName is variable defined in the BeanShell processor.
Path : /programs?channel=${channelName}
11. Add a listener to monitor the results.
Eg:
"HTTP Request" ---> "Add" ---> "Listeners" ---> "Summary Report"
11. You can download the .jmx file here and import to JMeter.
